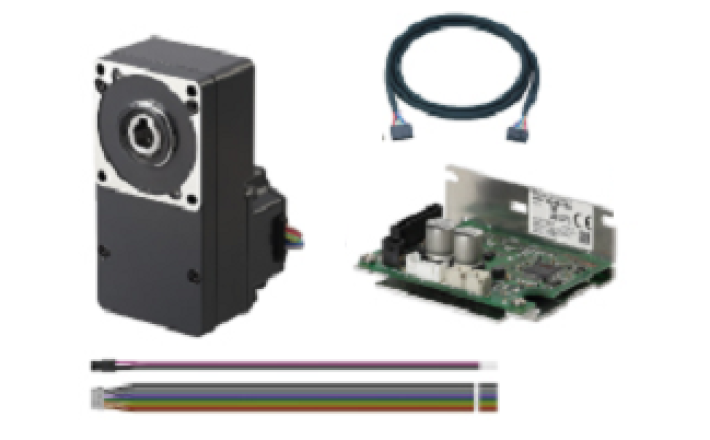

Tên thiết bị: Speed control motor BLH
Tình trạng: Còn hàng
Phân loại:Oriental Motor, Speed control motor
Giá:
CƯỜNG ANH NHÀ PHÂN PHỐI CHÍNH THỨC ORIENTAL MOTOR TẠI VIỆT NAM
|
Frame Size |
90mm |
|
Shaft/Gear Type |
Parallel Shaft Gearhead GFS Gear |
|
Gear Ratio |
15 |
|
Included Cable |
Without |
|
Rated Output Power (Continuous) |
100W |
|
Power Supply Input Rated Voltage |
24VDC |
|
Power Supply Input Permissible Voltage Range |
-10 to +10% |
|
Power Supply Input Rated Input Current |
6.0A |
|
Power Supply Input Maximum Input Current |
9.8A |
|
Rated Torque (Motor Shaft) |
0.4N･m |
|
Rated Speed (Motor Shaft) |
2500r/min |
|
Speed Control Range |
6.7 to 200 r/min (Speed Ratio 30:1) |
|
Permissible Torque |
5.4N･m（6.7 to 167r/min） |
|
Permissible Load Inertia J |
420×10^-4kg・m^2 |
|
Permissible Load Inertia J (When instantaneous stop or instantaneous bi-directional operation is performed) |
225×10^-4kg・m^2 |
|
Speed Regulation (Load) |
±0.5% max. [0 to rated torque, at rated speed, at rated voltage, at normal temperature] |
|
Speed Regulation (Voltage) |
±0.5% max. [Rated voltage ±10%, at rated speed, with no load, at normal temperature] |
|
Speed Regulation (Temperature) |
±0.5% max. [Operating ambient temperature 0 to +50℃, at rated speed, with no load, at rated voltage] |
|
Standard |
UL、CSA |
|
CE Marking |
affixed |
|
Speed Setting Method |
Analog Setting Type |
|
Mass: Motor |
2.9kg |
|
Mass: Control Circuit |
0.3kg |
|
Frame Size |
Shaft/Gear Type |
Power |
Power Supply |
Rated Torque |
Speed Control |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
10 to 300 r/min (Speed Ratio 30:1) |
|
|
BLHM5100K-10+BLHD100K+CC02AXH2 |
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
10 to 300 r/min (Speed Ratio 30:1) |
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
10 to 300 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
1 to 30 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
1 to 30 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
1 to 30 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
1 to 30 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
1 to 30 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
1 to 30 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
10 to 300 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
10 to 300 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
10 to 300 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
6.7 to 200 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
6.7 to 200 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
6.7 to 200 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
6.7 to 200 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
6.7 to 200 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
6.7 to 200 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
5 to 150 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
5 to 150 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
5 to 150 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
0.5 to 15 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
0.5 to 15 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
0.5 to 15 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
0.5 to 15 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
0.5 to 15 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
0.5 to 15 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
5 to 150 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
5 to 150 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
5 to 150 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
3.3 to 100 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
3.3 to 100 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
3.3 to 100 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
3.3 to 100 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
3.3 to 100 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
3.3 to 100 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
20 to 600 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
20 to 600 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
20 to 600 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
2 to 60 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
2 to 60 r/min (Speed Ratio 30:1) |
|
|
90mm |
Parallel Shaft Gearhead GFS Gear |
100W |
24VDC |
0.4N･m |
2 to 60 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
2 to 60 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
2 to 60 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
2 to 60 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
20 to 600 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
20 to 600 r/min (Speed Ratio 30:1) |
|
|
90mm |
Hollow Shaft Flat Gearhead FR Gear |
100W |
24VDC |
0.4N･m |
20 to 600 r/min (Speed Ratio 30:1) |
|
|
90mm |
Round Shaft Type |
100W |
24VDC |
0.4N･m |
100 to 3000 r/min (Speed Ratio 30:1) |
|
|
90mm |
Round Shaft Type |
100W |
24VDC |
0.4N･m |
100 to 3000 r/min (Speed Ratio 30:1) |
|
|
90mm |
Round Shaft Type |
100W |
24VDC |
0.4N･m |
100 to 3000 r/min (Speed Ratio 30:1) |
