Tên thiết bị: Axial Flow Fans AC Input - MRS Series
Xuất xứ: Japan
Tình trạng: Còn hàng
Phân loại:Cooling Fans, Oriental Motor
Giá:
Axial Flow Fans AC Input - MRS Series:
Large axial flow fans with large air flow, high static pressure and high efficiency AC Input.
Wide Variety of Products
Fans with Connector are Available
MRSConnector types are available for □180 mm of the MRS Series, MRE Series, MDS and MD Series, and MDA Series. With the use of a connector, the fan wiring process can be simplified. Maintenance is also easy as it only requires the connector to be removed and inserted when the fan needs to be replaced.
With Low-Speed Alarm
In addition to the standard type, with low-speed alarm types are also available that detect fan rotation abnormalities and output signals.
Items in this series conform to the UL, CSA and EN Standards, and also have the CE Marking (Low Voltage Directive) affixed.
Items in this series conform to the RoHS Directive that prohibits the use of six chemical substances including lead and cadmium.
|
Product Name |
Voltage |
Maximum Air Flow |
Maximum Static Pressure |
Additional Function |
Size |
|
AllSingle-Phase 100/110/115VACSingle-Phase 200/220/230VACSingle-Phase 200/230VACSingle-Phase 220/230VACThree-Phase 200/220/230VAC |
All11～12.5m^3/min11～12.8m^3/min13.2～15.5m^3/min21～24m^3/min21～25m^3/min4.5～5.0m^3/min6.2～7.3m^3/min |
All127～157Pa186～265Pa196～245Pa210～226Pa221～265Pa290～360Pa310～410Pa92～109Pa |
AllLow-Speed Alarm,Contact Alarm TypeLow-Speed Alarm, Contact Alarm TypeLow-Speed Alarm, Electronic Alarm TypeStandard Type |
All[]140 mm - 47 mm Thick[]160 mm - 62 mm Thick[]180 mm - 90 mm Thick[]200 mm - 90 mm Thick[]250 mm - 120 mm Thick |
|
|
MRS14-TTM |
Three-Phase 200/220/230VAC |
4.5～5.0m^3/min |
92～109Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]140 mm - 47 mm Thick |
|
MRS14-TUL |
Three-Phase 200/220/230VAC |
4.5～5.0m^3/min |
92～109Pa |
Standard Type |
[]140 mm - 47 mm Thick |
|
MRS16-BB |
Single-Phase 100/110/115VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, |
[]160 mm - 62 mm Thick |
|
MRS16-BTA |
Single-Phase 100/110/115VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, Contact Alarm Type |
[]160 mm - 62 mm Thick |
|

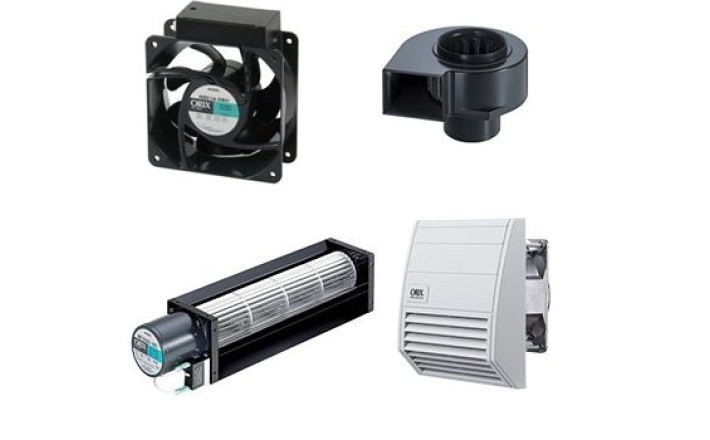

MRS16-BTM |
Single-Phase 100/110/115VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]160 mm - 62 mm Thick |
|
MRS16-BUL |
Single-Phase 100/110/115VAC |
6.2～7.3m^3/min |
127～157Pa |
Standard Type |
[]160 mm - 62 mm Thick |
|
MRS16-DB |
Single-Phase 200/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, |
[]160 mm - 62 mm Thick |
|
MRS16-DTA |
Single-Phase 200/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, Contact Alarm Type |
[]160 mm - 62 mm Thick |
|
MRS16-DTM |
Single-Phase 200/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]160 mm - 62 mm Thick |
|
MRS16-DUL |
Single-Phase 200/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Standard Type |
[]160 mm - 62 mm Thick |
|
MRS16-E |
Single-Phase 220/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Standard Type |
[]160 mm - 62 mm Thick |
|
MRS16-EB |
Single-Phase 220/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, |
[]160 mm - 62 mm Thick |
|
MRS16-ETM |
Single-Phase 220/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]160 mm - 62 mm Thick |
|
MRS16-TB |
Three-Phase 200/220/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, |
[]160 mm - 62 mm Thick |
|
MRS16-TTA |
Three-Phase 200/220/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, Contact Alarm Type |
[]160 mm - 62 mm Thick |
|
MRS16-TTM |
Three-Phase 200/220/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]160 mm - 62 mm Thick |
|
MRS16-TUL |
Three-Phase 200/220/230VAC |
6.2～7.3m^3/min |
127～157Pa |
Standard Type |
[]160 mm - 62 mm Thick |
|
MRS18-BB |
Single-Phase 100/110/115VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, |
[]180 mm - 90 mm Thick |
|
MRS18-BBH |
Single-Phase 100/110/115VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, |
[]180 mm - 90 mm Thick |
|
MRS18-BH |
Single-Phase 100/110/115VAC |
11～12.8m^3/min |
196～245Pa |
Standard Type |
[]180 mm - 90 mm Thick |
|
MRS18-BMH |
Single-Phase 100/110/115VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]180 mm - 90 mm Thick |
|
MRS18-BTM |
Single-Phase 100/110/115VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]180 mm - 90 mm Thick |
|
MRS18-BUL |
Single-Phase 100/110/115VAC |
11～12.8m^3/min |
196～245Pa |
Standard Type |
[]180 mm - 90 mm Thick |
|
MRS18-DB |
Single-Phase 200/230VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, |
[]180 mm - 90 mm Thick |
|
MRS18-DBH |
Single-Phase 200/230VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, |
[]180 mm - 90 mm Thick |
|
MRS18-DH |
Single-Phase 200/230VAC |
11～12.8m^3/min |
196～245Pa |
Standard Type |
[]180 mm - 90 mm Thick |
|
MRS18-DMH |
Single-Phase 200/230VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]180 mm - 90 mm Thick |
|
MRS18-DTM |
Single-Phase 200/230VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]180 mm - 90 mm Thick |
|
MRS18-DUL |
Single-Phase 200/230VAC |
11～12.8m^3/min |
196～245Pa |
Standard Type |
[]180 mm - 90 mm Thick |
|
MRS18-E |
Single-Phase 220/230VAC |
11～12.5m^3/min |
196～245Pa |
Standard Type |
[]180 mm - 90 mm Thick |
|
MRS18-EB |
Single-Phase 220/230VAC |
11～12.5m^3/min |
196～245Pa |
Low-Speed Alarm, |
[]180 mm - 90 mm Thick |
|
MRS18-EBH |
Single-Phase 220/230VAC |
11～12.5m^3/min |
196～245Pa |
Low-Speed Alarm, |
[]180 mm - 90 mm Thick |
|
MRS18-EH |
Single-Phase 220/230VAC |
11～12.5m^3/min |
196～245Pa |
Standard Type |
[]180 mm - 90 mm Thick |
|
MRS18-EMH |
Single-Phase 220/230VAC |
11～12.5m^3/min |
196～245Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]180 mm - 90 mm Thick |
|
MRS18-ETM |
Single-Phase 220/230VAC |
11～12.5m^3/min |
196～245Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]180 mm - 90 mm Thick |
|
MRS18-TB |
Three-Phase 200/220/230VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, |
[]180 mm - 90 mm Thick |
|
MRS18-TBH |
Three-Phase 200/220/230VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, |
[]180 mm - 90 mm Thick |
|
MRS18-TH |
Three-Phase 200/220/230VAC |
11～12.8m^3/min |
196～245Pa |
Standard Type |
[]180 mm - 90 mm Thick |
|
MRS18-TMH |
Three-Phase 200/220/230VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]180 mm - 90 mm Thick |
|
MRS18-TTM |
Three-Phase 200/220/230VAC |
11～12.8m^3/min |
196～245Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]180 mm - 90 mm Thick |
|
MRS18-TUL |
Three-Phase 200/220/230VAC |
11～12.8m^3/min |
196～245Pa |
Standard Type |
[]180 mm - 90 mm Thick |
|
MRS20-BB |
Single-Phase 100/110/115VAC |
13.2～15.5m^3/min |
186～265Pa |
Low-Speed Alarm, |
[]200 mm - 90 mm Thick |
|
MRS20-BM |
Single-Phase 100/110/115VAC |
13.2～15.5m^3/min |
186～265Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]200 mm - 90 mm Thick |
|
MRS20-BUL |
Single-Phase 100/110/115VAC |
13.2～15.5m^3/min |
186～265Pa |
Standard Type |
[]200 mm - 90 mm Thick |
|
MRS20-DB |
Single-Phase 200/230VAC |
13.2～15.5m^3/min |
186～265Pa |
Low-Speed Alarm, |
[]200 mm - 90 mm Thick |
|
MRS20-DM |
Single-Phase 200/230VAC |
13.2～15.5m^3/min |
186～265Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]200 mm - 90 mm Thick |
|
MRS20-DUL |
Single-Phase 200/230VAC |
13.2～15.5m^3/min |
186～265Pa |
Standard Type |
[]200 mm - 90 mm Thick |
|
MRS20-E |
Single-Phase 220/230VAC |
13.2～15.5m^3/min |
210～226Pa |
Standard Type |
[]200 mm - 90 mm Thick |
|
MRS20-EB |
Single-Phase 220/230VAC |
13.2～15.5m^3/min |
210～226Pa |
Low-Speed Alarm, |
[]200 mm - 90 mm Thick |
|
MRS20-EM |
Single-Phase 220/230VAC |
13.2～15.5m^3/min |
210～226Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]200 mm - 90 mm Thick |
|
MRS20-TB |
Three-Phase 200/220/230VAC |
13.2～15.5m^3/min |
221～265Pa |
Low-Speed Alarm, |
[]200 mm - 90 mm Thick |
|
MRS20-TM |
Three-Phase 200/220/230VAC |
13.2～15.5m^3/min |
221～265Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]200 mm - 90 mm Thick |
|
MRS20-TUL |
Three-Phase 200/220/230VAC |
13.2～15.5m^3/min |
221～265Pa |
Standard Type |
[]200 mm - 90 mm Thick |
|
MRS25-B |
Single-Phase 100/110/115VAC |
21～24m^3/min |
290～360Pa |
Standard Type |
[]250 mm - 120 mm Thick |
|
MRS25-BB |
Single-Phase 100/110/115VAC |
21～24m^3/min |
290～360Pa |
Low-Speed Alarm, Contact Alarm Type |
[]250 mm - 120 mm Thick |
|
MRS25-BM |
Single-Phase 100/110/115VAC |
21～24m^3/min |
290～360Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]250 mm - 120 mm Thick |
|
MRS25-D |
Single-Phase 200/220/230VAC |
21～24m^3/min |
290～360Pa |
Standard Type |
[]250 mm - 120 mm Thick |
|
MRS25-DB |
Single-Phase 200/220/230VAC |
21～24m^3/min |
290～360Pa |
Low-Speed Alarm, Contact Alarm Type |
[]250 mm - 120 mm Thick |
|
MRS25-DM |
Single-Phase 200/220/230VAC |
21～24m^3/min |
290～360Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]250 mm - 120 mm Thick |
|
MRS25-T |
Three-Phase 200/220/230VAC |
21～25m^3/min |
310～410Pa |
Standard Type |
[]250 mm - 120 mm Thick |
|
Three-Phase 200/220/230VAC |
21～25m^3/min |
310～410Pa |
Low-Speed Alarm, Contact Alarm Type |
[]250 mm - 120 mm Thick |
|
|
Three-Phase 200/220/230VAC |
21～25m^3/min |
310～410Pa |
Low-Speed Alarm, Electronic Alarm Type |
[]250 mm - 120 m |
