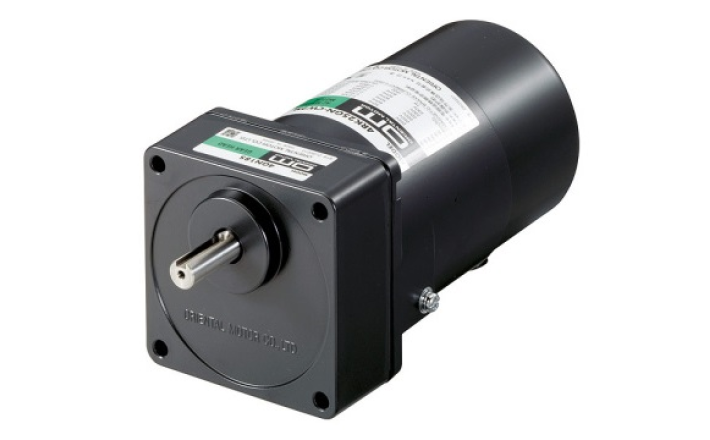

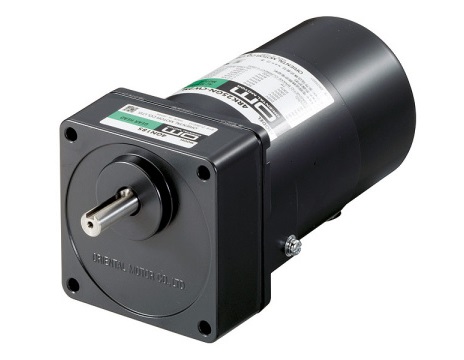

Tên thiết bị: Motor 40W - Electromagnetic Brake Motors
Xuất xứ: Japan
Tình trạng: Còn hàng
Phân loại:AC MOTOR, Oriental Motor
Giá:
Electromagnetic Brake Motors World K Series for Asia - 40W
Specifications:
|
Frame Size |
90mm |
|
Shaft/Gear Type |
Parallel Shaft GN-KF Gearhead |
|
Gear Ratio |
30 |
|
Type |
Lead Wire Type |
|
Time Rating |
Continuous |
|
Output |
40W |
|
Voltage / Frequency / Current |
Three-Phase 200V / 60Hz / 0.30A |
|
Starting Torque (Motor Shaft) |
Three-Phase 200V / 60Hz: 260mN･m |
|
Speed When Gearhead is Attached |
Three-Phase 200V / 60Hz: 60r/min |
|
Permissible Torque When Gearhead is Attached |
Three-Phase 200V / 60Hz: 5.7N･m |
|
Electromagnetic Brake Type |
Power off activated |
|
Electromagnetic Brake Voltage / Frequency / Current / Input |
Single-Phase 200V / 60Hz / 0.05A / 7W |
|
Electromagnetic Brake Static Friction Torque (Motor Shaft) |
Single-Phase 200V / 60Hz: 200mN･m |
|
Permissible Load Inertia J |
670×10^-4kg･m^2 |
|
Rotation Direction |
opposite direction as the motor shaft |
|
Capacitance |
- |
|
Standard |
GB |
|
CE Marking |
affixed |
|
Overheat Protection Device Type |
Thermal protector |
|
Mass: Motor |
2.8kg |
|
Mass: Gearhead |
1.5kg |
List of Product:
|
Product Name |
Voltage |
Frame Size |
Shaft/Gear Type |
Gear Ratio |
Output |
|
5IK40A-SW2ML |
Three-Phase 200/220V |
90mm |
Round Shaft Type |
- |
40W |
|
5IK40GN-SW2ML |
Three-Phase 200/220V |
90mm |
Pinion Shaft Type |
- |
40W |
|
5IK40GN-SW2ML+5GN100KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
100 |
40W |
|
5IK40GN-SW2ML+5GN100RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
100 |
40W |
|
5IK40GN-SW2ML+5GN100RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
100 |
40W |
|
5IK40GN-SW2ML+5GN12.5KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
12.5 |
40W |
|
5IK40GN-SW2ML+5GN12.5RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
12.5 |
40W |
|
5IK40GN-SW2ML+5GN12.5RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
12.5 |
40W |
|
5IK40GN-SW2ML+5GN120KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
120 |
40W |
|
5IK40GN-SW2ML+5GN120RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
120 |
40W |
|
5IK40GN-SW2ML+5GN120RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
120 |
40W |
|
5IK40GN-SW2ML+5GN150KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
150 |
40W |
|
5IK40GN-SW2ML+5GN150RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
150 |
40W |
|
5IK40GN-SW2ML+5GN150RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
150 |
40W |
|
5IK40GN-SW2ML+5GN15KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
15 |
40W |
|
5IK40GN-SW2ML+5GN15RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
15 |
40W |
|
5IK40GN-SW2ML+5GN15RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
15 |
40W |
|
5IK40GN-SW2ML+5GN180KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
180 |
40W |
|
5IK40GN-SW2ML+5GN180RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
180 |
40W |
|
5IK40GN-SW2ML+5GN180RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
180 |
40W |
|
5IK40GN-SW2ML+5GN18KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
18 |
40W |
|
5IK40GN-SW2ML+5GN18RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
18 |
40W |
|
5IK40GN-SW2ML+5GN18RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
18 |
40W |
|
5IK40GN-SW2ML+5GN25KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
25 |
40W |
|
5IK40GN-SW2ML+5GN25RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
25 |
40W |
|
5IK40GN-SW2ML+5GN25RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
25 |
40W |
|
5IK40GN-SW2ML+5GN3.6KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
3.6 |
40W |
|
5IK40GN-SW2ML+5GN3.6RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
3.6 |
40W |
|
5IK40GN-SW2ML+5GN3.6RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
3.6 |
40W |
|
5IK40GN-SW2ML+5GN30KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
30 |
40W |
|
5IK40GN-SW2ML+5GN30RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
30 |
40W |
|
5IK40GN-SW2ML+5GN30RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
30 |
40W |
|
5IK40GN-SW2ML+5GN36KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
36 |
40W |
|
5IK40GN-SW2ML+5GN36RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
36 |
40W |
|
5IK40GN-SW2ML+5GN36RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
36 |
40W |
|
5IK40GN-SW2ML+5GN3KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
3 |
40W |
|
5IK40GN-SW2ML+5GN3RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
3 |
40W |
|
5IK40GN-SW2ML+5GN3RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
3 |
40W |
|
5IK40GN-SW2ML+5GN50KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
50 |
40W |
|
5IK40GN-SW2ML+5GN50RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
50 |
40W |
|
5IK40GN-SW2ML+5GN50RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
50 |
40W |
|
5IK40GN-SW2ML+5GN5KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
5 |
40W |
|
5IK40GN-SW2ML+5GN5RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
5 |
40W |
|
5IK40GN-SW2ML+5GN5RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
5 |
40W |
|
5IK40GN-SW2ML+5GN60KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
60 |
40W |
|
5IK40GN-SW2ML+5GN60RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
60 |
40W |
|
5IK40GN-SW2ML+5GN60RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
60 |
40W |
|
5IK40GN-SW2ML+5GN6KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
6 |
40W |
|
5IK40GN-SW2ML+5GN6RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
6 |
40W |
|
5IK40GN-SW2ML+5GN6RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
6 |
40W |
|
5IK40GN-SW2ML+5GN7.5KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
7.5 |
40W |
|
5IK40GN-SW2ML+5GN7.5RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
7.5 |
40W |
|
5IK40GN-SW2ML+5GN7.5RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
7.5 |
40W |
|
5IK40GN-SW2ML+5GN75KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
75 |
40W |
|
5IK40GN-SW2ML+5GN75RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
75 |
40W |
|
5IK40GN-SW2ML+5GN75RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
75 |
40W |
|
5IK40GN-SW2ML+5GN90KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
90 |
40W |
|
5IK40GN-SW2ML+5GN90RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
90 |
40W |
|
5IK40GN-SW2ML+5GN90RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
90 |
40W |
|
5IK40GN-SW2ML+5GN9KF |
Three-Phase 200/220V |
90mm |
Parallel Shaft GN-KF Gearhead |
9 |
40W |
|
5IK40GN-SW2ML+5GN9RA |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
9 |
40W |
|
5IK40GN-SW2ML+5GN9RH |
Three-Phase 200/220V |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
9 |
40W |
|
5RK40A-AW2ML2 |
Single-Phase 110V |
90mm |
Round Shaft Type |
- |
40W |
|
5RK40A-CW2ML1 |
Single-Phase 220VAC |
90mm |
Round Shaft Type |
- |
40W |
|
5RK40A-CW2ML2 |
Single-Phase 220/230VAC |
90mm |
Round Shaft Type |
- |
40W |
|
5RK40GN-AW2ML2 |
Single-Phase 110V |
90mm |
Pinion Shaft Type |
- |
40W |
|
5RK40GN-AW2ML2+5GN100KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
100 |
40W |
|
5RK40GN-AW2ML2+5GN100RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
100 |
40W |
|
5RK40GN-AW2ML2+5GN100RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
100 |
40W |
|
5RK40GN-AW2ML2+5GN12.5KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
12.5 |
40W |
|
5RK40GN-AW2ML2+5GN12.5RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
12.5 |
40W |
|
5RK40GN-AW2ML2+5GN12.5RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
12.5 |
40W |
|
5RK40GN-AW2ML2+5GN120KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
120 |
40W |
|
5RK40GN-AW2ML2+5GN120RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
120 |
40W |
|
5RK40GN-AW2ML2+5GN120RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
120 |
40W |
|
5RK40GN-AW2ML2+5GN150KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
150 |
40W |
|
5RK40GN-AW2ML2+5GN150RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
150 |
40W |
|
5RK40GN-AW2ML2+5GN150RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
150 |
40W |
|
5RK40GN-AW2ML2+5GN15KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
15 |
40W |
|
5RK40GN-AW2ML2+5GN15RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
15 |
40W |
|
5RK40GN-AW2ML2+5GN15RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
15 |
40W |
|
5RK40GN-AW2ML2+5GN180KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
180 |
40W |
|
5RK40GN-AW2ML2+5GN180RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
180 |
40W |
|
5RK40GN-AW2ML2+5GN180RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
180 |
40W |
|
5RK40GN-AW2ML2+5GN18KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
18 |
40W |
|
5RK40GN-AW2ML2+5GN18RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
18 |
40W |
|
5RK40GN-AW2ML2+5GN18RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
18 |
40W |
|
5RK40GN-AW2ML2+5GN25KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
25 |
40W |
|
5RK40GN-AW2ML2+5GN25RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
25 |
40W |
|
5RK40GN-AW2ML2+5GN25RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
25 |
40W |
|
5RK40GN-AW2ML2+5GN3.6KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
3.6 |
40W |
|
5RK40GN-AW2ML2+5GN3.6RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
3.6 |
40W |
|
5RK40GN-AW2ML2+5GN3.6RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
3.6 |
40W |
|
5RK40GN-AW2ML2+5GN30KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
30 |
40W |
|
5RK40GN-AW2ML2+5GN30RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
30 |
40W |
|
5RK40GN-AW2ML2+5GN30RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
30 |
40W |
|
5RK40GN-AW2ML2+5GN36KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
36 |
40W |
|
5RK40GN-AW2ML2+5GN36RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
36 |
40W |
|
5RK40GN-AW2ML2+5GN36RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
36 |
40W |
|
5RK40GN-AW2ML2+5GN3KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
3 |
40W |
|
5RK40GN-AW2ML2+5GN3RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
3 |
40W |
|
5RK40GN-AW2ML2+5GN3RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
3 |
40W |
|
5RK40GN-AW2ML2+5GN50KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
50 |
40W |
|
5RK40GN-AW2ML2+5GN50RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
50 |
40W |
|
5RK40GN-AW2ML2+5GN50RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
50 |
40W |
|
5RK40GN-AW2ML2+5GN5KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
5 |
40W |
|
5RK40GN-AW2ML2+5GN5RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
5 |
40W |
|
5RK40GN-AW2ML2+5GN5RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
5 |
40W |
|
5RK40GN-AW2ML2+5GN60KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
60 |
40W |
|
5RK40GN-AW2ML2+5GN60RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
60 |
40W |
|
5RK40GN-AW2ML2+5GN60RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
60 |
40W |
|
5RK40GN-AW2ML2+5GN6KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
6 |
40W |
|
5RK40GN-AW2ML2+5GN6RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
6 |
40W |
|
5RK40GN-AW2ML2+5GN6RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
6 |
40W |
|
5RK40GN-AW2ML2+5GN7.5KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
7.5 |
40W |
|
5RK40GN-AW2ML2+5GN7.5RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
7.5 |
40W |
|
5RK40GN-AW2ML2+5GN7.5RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
7.5 |
40W |
|
5RK40GN-AW2ML2+5GN75KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
75 |
40W |
|
5RK40GN-AW2ML2+5GN75RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
75 |
40W |
|
5RK40GN-AW2ML2+5GN75RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
75 |
40W |
|
5RK40GN-AW2ML2+5GN90KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
90 |
40W |
|
5RK40GN-AW2ML2+5GN90RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
90 |
40W |
|
5RK40GN-AW2ML2+5GN90RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
90 |
40W |
|
5RK40GN-AW2ML2+5GN9KF |
Single-Phase 110V |
90mm |
Parallel Shaft GN-KF Gearhead |
9 |
40W |
|
5RK40GN-AW2ML2+5GN9RA |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
9 |
40W |
|
5RK40GN-AW2ML2+5GN9RH |
Single-Phase 110VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
9 |
40W |
|
5RK40GN-CW2ML1 |
Single-Phase 220VAC |
90mm |
Pinion Shaft Type |
- |
40W |
|
5RK40GN-CW2ML1+5GN100KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
100 |
40W |
|
5RK40GN-CW2ML1+5GN100RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
100 |
40W |
|
5RK40GN-CW2ML1+5GN100RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
100 |
40W |
|
5RK40GN-CW2ML1+5GN12.5KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
12.5 |
40W |
|
5RK40GN-CW2ML1+5GN12.5RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
12.5 |
40W |
|
5RK40GN-CW2ML1+5GN12.5RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
12.5 |
40W |
|
5RK40GN-CW2ML1+5GN120KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
120 |
40W |
|
5RK40GN-CW2ML1+5GN120RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
120 |
40W |
|
5RK40GN-CW2ML1+5GN120RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
120 |
40W |
|
5RK40GN-CW2ML1+5GN150KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
150 |
40W |
|
5RK40GN-CW2ML1+5GN150RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
150 |
40W |
|
5RK40GN-CW2ML1+5GN150RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
150 |
40W |
|
5RK40GN-CW2ML1+5GN15KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
15 |
40W |
|
5RK40GN-CW2ML1+5GN15RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
15 |
40W |
|
5RK40GN-CW2ML1+5GN15RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
15 |
40W |
|
5RK40GN-CW2ML1+5GN180KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
180 |
40W |
|
5RK40GN-CW2ML1+5GN180RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
180 |
40W |
|
5RK40GN-CW2ML1+5GN180RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
180 |
40W |
|
5RK40GN-CW2ML1+5GN18KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
18 |
40W |
|
5RK40GN-CW2ML1+5GN18RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
18 |
40W |
|
5RK40GN-CW2ML1+5GN18RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
18 |
40W |
|
5RK40GN-CW2ML1+5GN25KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
25 |
40W |
|
5RK40GN-CW2ML1+5GN25RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
25 |
40W |
|
5RK40GN-CW2ML1+5GN25RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
25 |
40W |
|
5RK40GN-CW2ML1+5GN3.6KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
3.6 |
40W |
|
5RK40GN-CW2ML1+5GN3.6RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
3.6 |
40W |
|
5RK40GN-CW2ML1+5GN3.6RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
3.6 |
40W |
|
5RK40GN-CW2ML1+5GN30KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
30 |
40W |
|
5RK40GN-CW2ML1+5GN30RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
30 |
40W |
|
5RK40GN-CW2ML1+5GN30RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
30 |
40W |
|
5RK40GN-CW2ML1+5GN36KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
36 |
40W |
|
5RK40GN-CW2ML1+5GN36RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
36 |
40W |
|
5RK40GN-CW2ML1+5GN36RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
36 |
40W |
|
5RK40GN-CW2ML1+5GN3KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
3 |
40W |
|
5RK40GN-CW2ML1+5GN3RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
3 |
40W |
|
5RK40GN-CW2ML1+5GN3RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
3 |
40W |
|
5RK40GN-CW2ML1+5GN50KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
50 |
40W |
|
5RK40GN-CW2ML1+5GN50RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
50 |
40W |
|
5RK40GN-CW2ML1+5GN50RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
50 |
40W |
|
5RK40GN-CW2ML1+5GN5KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
5 |
40W |
|
5RK40GN-CW2ML1+5GN5RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
5 |
40W |
|
5RK40GN-CW2ML1+5GN5RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
5 |
40W |
|
5RK40GN-CW2ML1+5GN60KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
60 |
40W |
|
5RK40GN-CW2ML1+5GN60RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
60 |
40W |
|
5RK40GN-CW2ML1+5GN60RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
60 |
40W |
|
5RK40GN-CW2ML1+5GN6KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
6 |
40W |
|
5RK40GN-CW2ML1+5GN6RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
6 |
40W |
|
5RK40GN-CW2ML1+5GN6RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
6 |
40W |
|
5RK40GN-CW2ML1+5GN7.5KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
7.5 |
40W |
|
5RK40GN-CW2ML1+5GN7.5RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
7.5 |
40W |
|
5RK40GN-CW2ML1+5GN7.5RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
7.5 |
40W |
|
5RK40GN-CW2ML1+5GN75KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
75 |
40W |
|
5RK40GN-CW2ML1+5GN75RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
75 |
40W |
|
5RK40GN-CW2ML1+5GN75RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
75 |
40W |
|
5RK40GN-CW2ML1+5GN90KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
90 |
40W |
|
5RK40GN-CW2ML1+5GN90RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
90 |
40W |
|
5RK40GN-CW2ML1+5GN90RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
90 |
40W |
|
5RK40GN-CW2ML1+5GN9KF |
Single-Phase 220VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
9 |
40W |
|
5RK40GN-CW2ML1+5GN9RA |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
9 |
40W |
|
5RK40GN-CW2ML1+5GN9RH |
Single-Phase 220VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
9 |
40W |
|
5RK40GN-CW2ML2 |
Single-Phase 220/230VAC |
90mm |
Pinion Shaft Type |
- |
40W |
|
5RK40GN-CW2ML2+5GN100KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
100 |
40W |
|
5RK40GN-CW2ML2+5GN100RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
100 |
40W |
|
5RK40GN-CW2ML2+5GN100RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
100 |
40W |
|
5RK40GN-CW2ML2+5GN12.5KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
12.5 |
40W |
|
5RK40GN-CW2ML2+5GN12.5RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
12.5 |
40W |
|
5RK40GN-CW2ML2+5GN12.5RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
12.5 |
40W |
|
5RK40GN-CW2ML2+5GN120KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
120 |
40W |
|
5RK40GN-CW2ML2+5GN120RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
120 |
40W |
|
5RK40GN-CW2ML2+5GN120RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
120 |
40W |
|
5RK40GN-CW2ML2+5GN150KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
150 |
40W |
|
5RK40GN-CW2ML2+5GN150RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
150 |
40W |
|
5RK40GN-CW2ML2+5GN150RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
150 |
40W |
|
5RK40GN-CW2ML2+5GN15KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
15 |
40W |
|
5RK40GN-CW2ML2+5GN15RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
15 |
40W |
|
5RK40GN-CW2ML2+5GN15RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
15 |
40W |
|
5RK40GN-CW2ML2+5GN180KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
180 |
40W |
|
5RK40GN-CW2ML2+5GN180RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
180 |
40W |
|
5RK40GN-CW2ML2+5GN180RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
180 |
40W |
|
5RK40GN-CW2ML2+5GN18KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
18 |
40W |
|
5RK40GN-CW2ML2+5GN18RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
18 |
40W |
|
5RK40GN-CW2ML2+5GN18RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
18 |
40W |
|
5RK40GN-CW2ML2+5GN25KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
25 |
40W |
|
5RK40GN-CW2ML2+5GN25RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
25 |
40W |
|
5RK40GN-CW2ML2+5GN25RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
25 |
40W |
|
5RK40GN-CW2ML2+5GN3.6KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
3.6 |
40W |
|
5RK40GN-CW2ML2+5GN3.6RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
3.6 |
40W |
|
5RK40GN-CW2ML2+5GN3.6RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
3.6 |
40W |
|
5RK40GN-CW2ML2+5GN30KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
30 |
40W |
|
5RK40GN-CW2ML2+5GN30RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
30 |
40W |
|
5RK40GN-CW2ML2+5GN30RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
30 |
40W |
|
5RK40GN-CW2ML2+5GN36KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
36 |
40W |
|
5RK40GN-CW2ML2+5GN36RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
36 |
40W |
|
5RK40GN-CW2ML2+5GN36RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
36 |
40W |
|
5RK40GN-CW2ML2+5GN3KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
3 |
40W |
|
5RK40GN-CW2ML2+5GN3RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
3 |
40W |
|
5RK40GN-CW2ML2+5GN3RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
3 |
40W |
|
5RK40GN-CW2ML2+5GN50KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
50 |
40W |
|
5RK40GN-CW2ML2+5GN50RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
50 |
40W |
|
5RK40GN-CW2ML2+5GN50RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
50 |
40W |
|
5RK40GN-CW2ML2+5GN5KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
5 |
40W |
|
5RK40GN-CW2ML2+5GN5RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
5 |
40W |
|
5RK40GN-CW2ML2+5GN5RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
5 |
40W |
|
5RK40GN-CW2ML2+5GN60KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
60 |
40W |
|
5RK40GN-CW2ML2+5GN60RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
60 |
40W |
|
5RK40GN-CW2ML2+5GN60RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
60 |
40W |
|
5RK40GN-CW2ML2+5GN6KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
6 |
40W |
|
5RK40GN-CW2ML2+5GN6RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
6 |
40W |
|
5RK40GN-CW2ML2+5GN6RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
6 |
40W |
|
5RK40GN-CW2ML2+5GN7.5KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
7.5 |
40W |
|
5RK40GN-CW2ML2+5GN7.5RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
7.5 |
40W |
|
5RK40GN-CW2ML2+5GN7.5RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
7.5 |
40W |
|
5RK40GN-CW2ML2+5GN75KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
75 |
40W |
|
5RK40GN-CW2ML2+5GN75RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
75 |
40W |
|
5RK40GN-CW2ML2+5GN75RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
75 |
40W |
|
5RK40GN-CW2ML2+5GN90KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
90 |
40W |
|
5RK40GN-CW2ML2+5GN90RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
90 |
40W |
|
5RK40GN-CW2ML2+5GN90RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
90 |
40W |
|
5RK40GN-CW2ML2+5GN9KF |
Single-Phase 220/230VAC |
90mm |
Parallel Shaft GN-KF Gearhead |
9 |
40W |
|
5RK40GN-CW2ML2+5GN9RA |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Solid Shaft Gearhead |
9 |
40W |
|
5RK40GN-CW2ML2+5GN9RH |
Single-Phase 220/230VAC |
90mm |
Right-Angle Shaft Hollow Shaft Gearhead |
9 |
40W |
