Frame Size

70mm

Shaft/Gear Type

Parallel Shaft GN-KF Gearhead

Gear Ratio

15

Type

Lead Wire Type

Time Rating

Continuous

Output

15W

Voltage / Frequency / Current

Three-Phase 200V / 60Hz / 0.15A
Three-Phase 220V / 60Hz / 0.16A

Starting Torque (Motor Shaft)

Three-Phase 200V / 60Hz: 85mN･m
Three-Phase 220V / 60Hz: 100mN･m

Speed When Gearhead is Attached

Three-Phase 200V / 60Hz: 120r/min
Three-Phase 220V / 60Hz: 120r/min

Permissible Torque When Gearhead is Attached

Three-Phase 200V / 60Hz: 1.2N･m
Three-Phase 220V / 60Hz: 1.2N･m

Electromagnetic Brake Type

Power off activated

Electromagnetic Brake Voltage / Frequency / Current / Input

Single-Phase 200V / 60Hz / 0.05A / 7W
Single-Phase 220V / 60Hz / 0.05A / 7W

Electromagnetic Brake Static Friction Torque (Motor Shaft)

Single-Phase 200V / 60Hz: 80mN･m
Single-Phase 220V / 60Hz: 80mN･m

Permissible Load Inertia J

31×10^-4kg･m^2

Rotation Direction

same direction as the motor shaft

Capacitance

-

Standard

GB

CE Marking

affixed

Overheat Protection Device Type

Thermal protector

Mass: Motor

1.3kg

Mass: Gearhead

0.55kg

Product Name

Voltage

Frame Size

Shaft/Gear Type

Gear Ratio

Output

3IK15A-SW2ML

Three-Phase 200/220V

70mm

Round Shaft Type

-

15W

3IK15GN-SW2ML

Three-Phase 200/220V

70mm

Pinion Shaft Type

-

15W

3IK15GN-SW2ML+3GN100KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

100

15W

3IK15GN-SW2ML+3GN12.5KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

12.5

15W

3IK15GN-SW2ML+3GN120KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

120

15W

3IK15GN-SW2ML+3GN150KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

150

15W

3IK15GN-SW2ML+3GN15KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

15

15W

3IK15GN-SW2ML+3GN180KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

180

15W

3IK15GN-SW2ML+3GN18KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

18

15W

3IK15GN-SW2ML+3GN25KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

25

15W

3IK15GN-SW2ML+3GN3.6KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

3.6

15W

3IK15GN-SW2ML+3GN30KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

30

15W

3IK15GN-SW2ML+3GN36KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

36

15W

3IK15GN-SW2ML+3GN3KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

3

15W

3IK15GN-SW2ML+3GN50KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

50

15W

3IK15GN-SW2ML+3GN5KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

5

15W

3IK15GN-SW2ML+3GN60KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

60

15W

3IK15GN-SW2ML+3GN6KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

6

15W

3IK15GN-SW2ML+3GN7.5KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

7.5

15W

3IK15GN-SW2ML+3GN75KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

75

15W

3IK15GN-SW2ML+3GN90KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

90

15W

3IK15GN-SW2ML+3GN9KF

Three-Phase 200/220V

70mm

Parallel Shaft GN-KF Gearhead

9

15W

3RK15A-AW2ML2

Single-Phase 110V

70mm

Round Shaft Type

-

15W

3RK15A-CW2ML2

Single-Phase 220/230VAC

70mm

Round Shaft Type

-

15W

3RK15GN-AW2ML2

Single-Phase 110V

70mm

Pinion Shaft Type

-

15W

3RK15GN-AW2ML2+3GN100KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

100

15W

3RK15GN-AW2ML2+3GN12.5KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

12.5

15W

3RK15GN-AW2ML2+3GN120KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

120

15W

3RK15GN-AW2ML2+3GN150KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

150

15W

3RK15GN-AW2ML2+3GN15KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

15

15W

3RK15GN-AW2ML2+3GN180KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

180

15W

3RK15GN-AW2ML2+3GN18KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

18

15W

3RK15GN-AW2ML2+3GN25KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

25

15W

3RK15GN-AW2ML2+3GN3.6KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

3.6

15W

3RK15GN-AW2ML2+3GN30KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

30

15W

3RK15GN-AW2ML2+3GN36KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

36

15W

3RK15GN-AW2ML2+3GN3KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

3

15W

3RK15GN-AW2ML2+3GN50KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

50

15W

3RK15GN-AW2ML2+3GN5KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

5

15W

3RK15GN-AW2ML2+3GN60KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

60

15W

3RK15GN-AW2ML2+3GN6KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

6

15W

3RK15GN-AW2ML2+3GN7.5KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

7.5

15W

3RK15GN-AW2ML2+3GN75KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

75

15W

3RK15GN-AW2ML2+3GN90KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

90

15W

3RK15GN-AW2ML2+3GN9KF

Single-Phase 110V

70mm

Parallel Shaft GN-KF Gearhead

9

15W

3RK15GN-CW2ML2

Single-Phase 220/230VAC

70mm

Pinion Shaft Type

-

15W

3RK15GN-CW2ML2+3GN100KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

100

15W

3RK15GN-CW2ML2+3GN12.5KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

12.5

15W

3RK15GN-CW2ML2+3GN120KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

120

15W

3RK15GN-CW2ML2+3GN150KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

150

15W

3RK15GN-CW2ML2+3GN15KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

15

15W

3RK15GN-CW2ML2+3GN180KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

180

15W

3RK15GN-CW2ML2+3GN18KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

18

15W

3RK15GN-CW2ML2+3GN25KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

25

15W

3RK15GN-CW2ML2+3GN3.6KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

3.6

15W

3RK15GN-CW2ML2+3GN30KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

30

15W

3RK15GN-CW2ML2+3GN36KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

36

15W

3RK15GN-CW2ML2+3GN3KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

3

15W

3RK15GN-CW2ML2+3GN50KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

50

15W

3RK15GN-CW2ML2+3GN5KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

5

15W

3RK15GN-CW2ML2+3GN60KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

60

15W

3RK15GN-CW2ML2+3GN6KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

6

15W

3RK15GN-CW2ML2+3GN7.5KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

7.5

15W

3RK15GN-CW2ML2+3GN75KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

75

15W

3RK15GN-CW2ML2+3

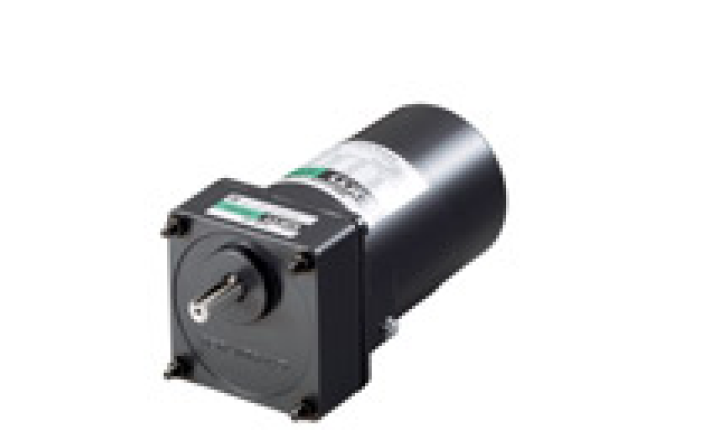

Electromagnetic Brake Motors World K Series for Asia - 15W

Specifications:

• ●There is a built-in thermal protector (automatic return type). If a motor overheats for any reason, the thermal protector is activated and the motor is stopped.(The power supply to the electromagnetic brake is kept and the brake is released.)When the motor temperature drops, the thermal protector closes and the motor restarts automatically. Be sure to turn the power supply off before inspecting.
  ●This type of motor does not contain a built-in friction brake mechanism similar to the reversible motors.

• ●The speed is calculated by dividing the motor's synchronous speed (1800 r/min) by the gear ratio.The actual speed is 2 to 20% less, depending on the load.

List of Product:

GN90KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

90

15W

3RK15GN-CW2ML2+3GN9KF

Single-Phase 220/230VAC

70mm

Parallel Shaft GN-KF Gearhead

9

15W
