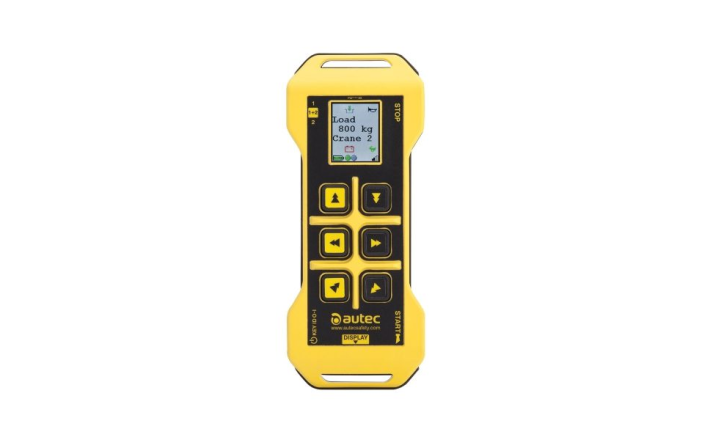

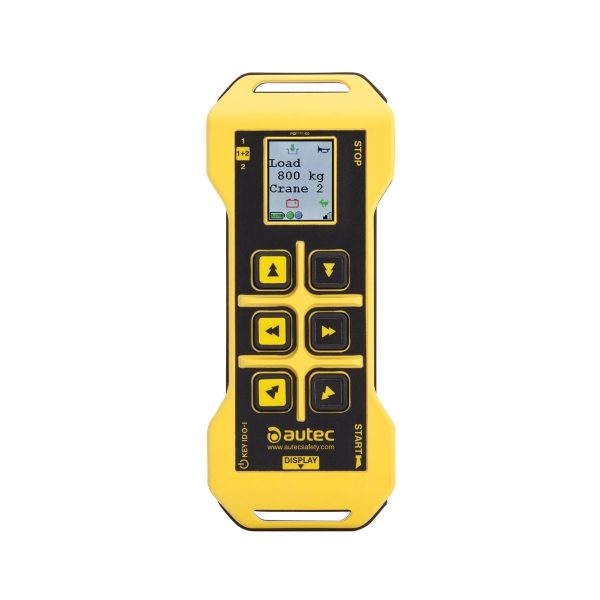

LK Neo is a pushbuttontransmitting unit, available in 6, 8, 10 and 12 keys. In addition there are 6 and 10-button configurations with a 1.8'' customizable color display. Among the main features of the product include: STOP function according with EN ISO 13849-1, dual-band technology (434-915 MHz), wide customization range thanks to the different options available and much more.

Accessories
Heavy-duty cover
Shoulder strap pouch

Options
Key ID 0-1
2/3 position switch
Rotative switch
Extractable mechanical key
Potentiometer
IR Sensor
Zero-G Sensor
Enabling Switch
External Buzzer
Soft Cover

Power supply

3.7 VDC with Li-ion battery
3.6 VDC with NiMH battery

Frequency band

433.05 - 434.79 MHz (64 channels)
915-928 MHz (256 channels)

Typical working range

75-100 m

Average usage time with fully charged battery
(continuous use at 20°C / 68°F)

> 20 h with Li-ion battery
> 10 h with NiMH battery

Safety performance of the STOP function
(EN ISO 13849-1)

PL d

Protection degree

IP65 (NEMA 4)

Operating and storage temperature

operating: (-20 °C) ÷ (+55 °C) / (-4 °F) ÷ (+131 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)

Dimensions

207.5 x 85 x 49 mm
8.17 x 3.35 x 1.92 in

Weight

380 g
0.837 lb
