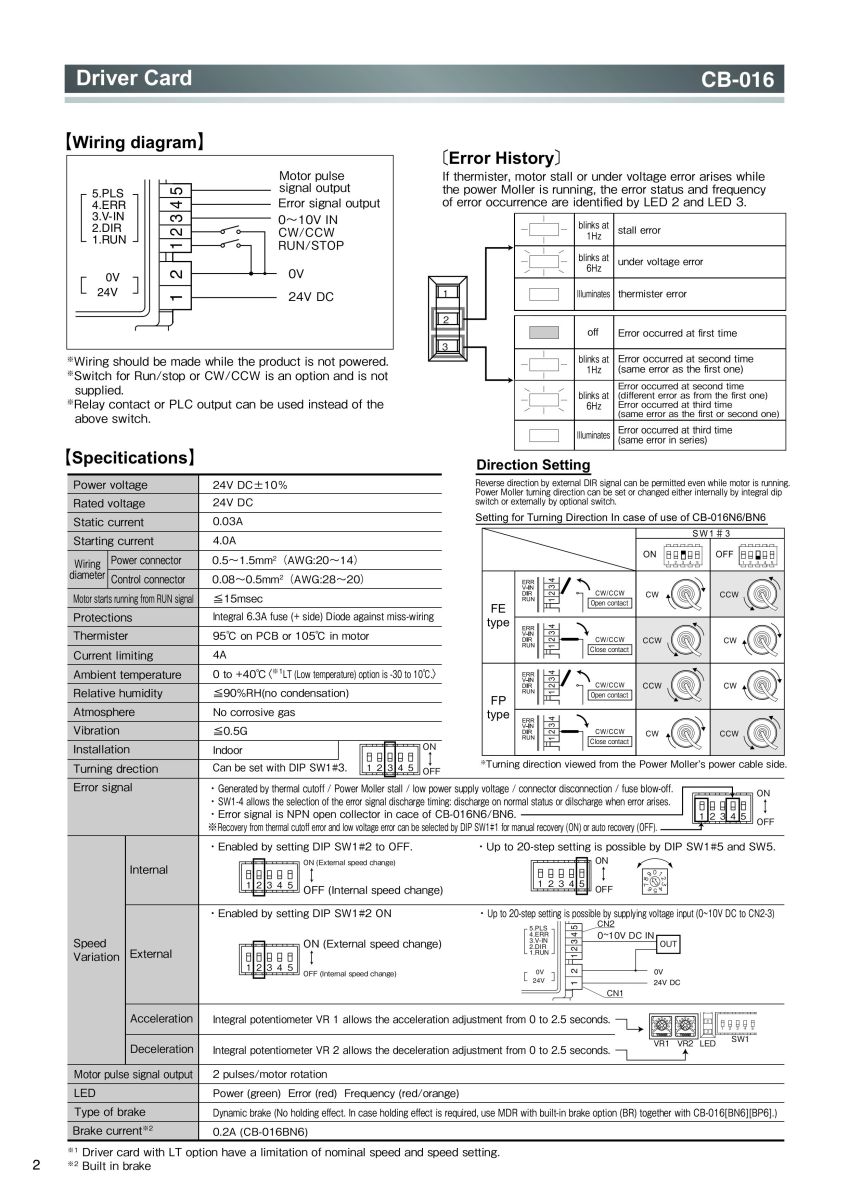

| Electrical | • 24V DC ±10% input • Battery • Power Supply: fullwave rectified with smoothed current and < 10% Ripple • Power ON delay < 1s • 4A locking current • Input signal level for activation • 0V (3V or less) for NPN • 24V (18V or greater) for PNP • Output (Error and Motor Pulse) signals • Open collector 24V, 25mA or less • NPN • PNP (selectable for Error only) • Brake model only • 0.2s delay between stop signal and mechanical brake reaction • 0.2A brake current @24V (< 0.1s) • Brake coil is active (disengaging brake) while motor is running |
|
| Brake | • Dynamic (Electric-Both models) • Mechanical (CB-016BS7 only) |
|
| Protection | • Thermal protection reaction • 85° C (185° F) on the PCB • 105° C (221° F) in the motor • Built-in 5A fuse for power supply protection • Built-in diode for incorrect wiring protection |
|
| Applicable Environment | • Temperature 0~40° C (32~104° F) • < 90% Relative Humidity (No condensation) • No corrosive gas • Vibration < 0.5G |
|
| Power Source | • 24VDC Battery or 24VDC Power Supply• Battery or fullwave rectified with smoothed current < 10% Ripple | |
